Architectural Mesh Facades HT-6216

ITEMS
HT-6216
Material
Stainless Steel 304, 316, 316L
Weft Diameter
2mm
Warp Diameter
1.2mm×3
Weft Pitch
6mm
Warp pitch
17.5mm
Weigth
6.44kg/㎡

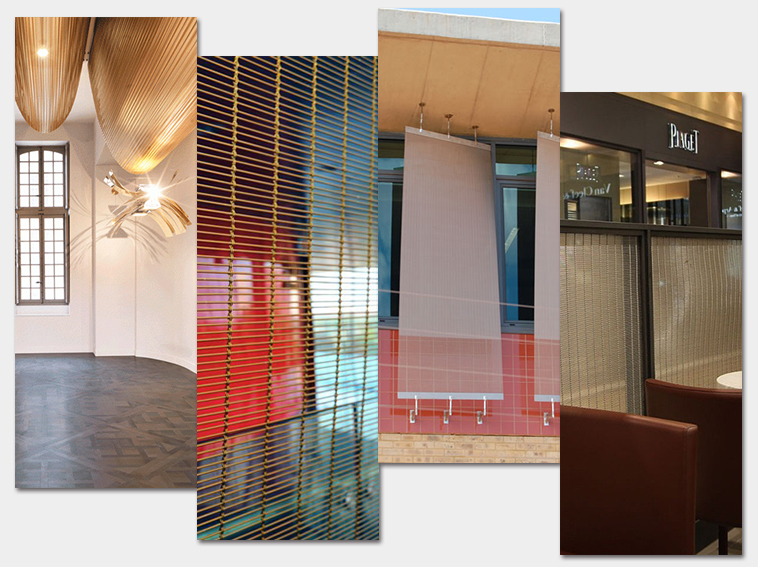

ARCHITECTURAL MESH: COLORS AND SURFACES
Metal meshes captivate in the field of architecture thanks to the purist elegance of stainless steel. To enable the use of colors in architecture, we has also developed various surface treatment procedures for wire meshes. Depending on the location, colored architectural meshes convey different impressions and appearances.
Paint Finish

Ready-cut architectural meshes are subsequently painted in a wet-paint spraying process. The preferred materials for this procedure are PC meshes, which are fully wet painted over an area of up to 6 x 2.50 m on either one or both sides.
Coating

Cable mesh made of stainless steel and spiral mesh made of stainless steel or aluminum can be coated with a variety of stylish colors. Red, gold, black and white are available as standard, and custom colors, i.e. any RAL color, are also available to any customer ordering large quantities of architectural mesh. Before weaving, a colored coating is added to the mesh wires. The vertical sides of the mesh remain in uncoated stainless steel.
Non-ferrous metals

The standard material used is stainless steel. The Mandarin mesh type is stocked in bronze. Of course, the non-ferrous metals copper and brass can also be used for architectural meshes for specific projects. All non-ferrous metals oxidize in humid environments and on contact with hands. These mesh materials thus form a patina. This process cannot be prevented or reversed, and can also occur unevenly.

Demand of Free Sample,Contact Us!
