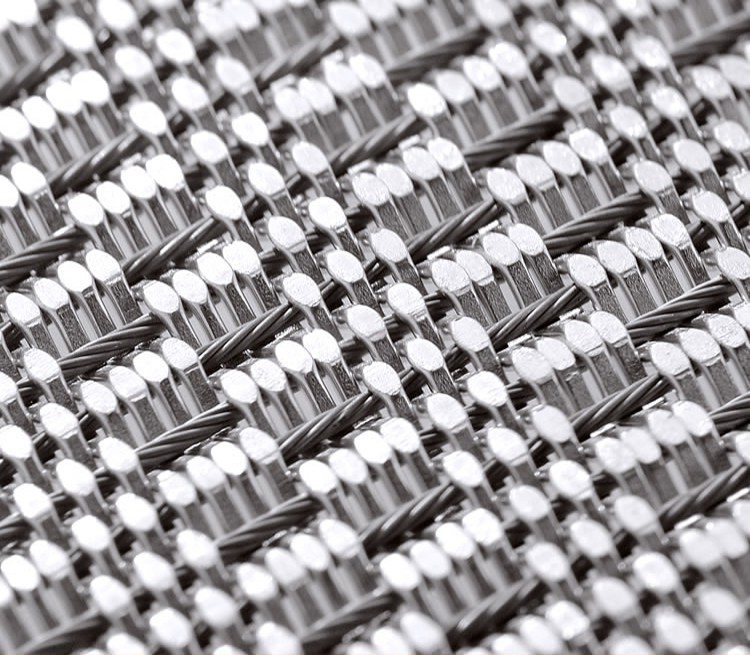

Flexible Elevator Mesh HT-6514

ITEMS
HT-6514
Material
Stainless Steel 304, 316, 316L
Rod Diameter
1mm×2mm×4
Cable Diameter
0.81mm×1.15mm
Rod Pitch
9mm
Cable Pitch
7.6mm
Weight
8.2kg/㎡
The wire mesh used as elevator cab covering solve the problem of the functional and aesthetic coating of structures that are often alien to the building that they serve.
The wire mesh Architecture “dress up” like a second skin the internal and external surfaces of stairs and elevator cab, giving great originality and innovation mark to the structure of public or private buildings.
The main features of innovative wire mesh Architecture, used as coatings for elevator cab, are:

Function of partial screen to sunlight;
Partial protection from rain and wind;
Possibility to be installed on new or existing buildings;
If applied outdoor, maintenance-free, thanks to self-cleaning due to the natural cycles of rain and wind;
Unlimited service life and complete recyclability.
